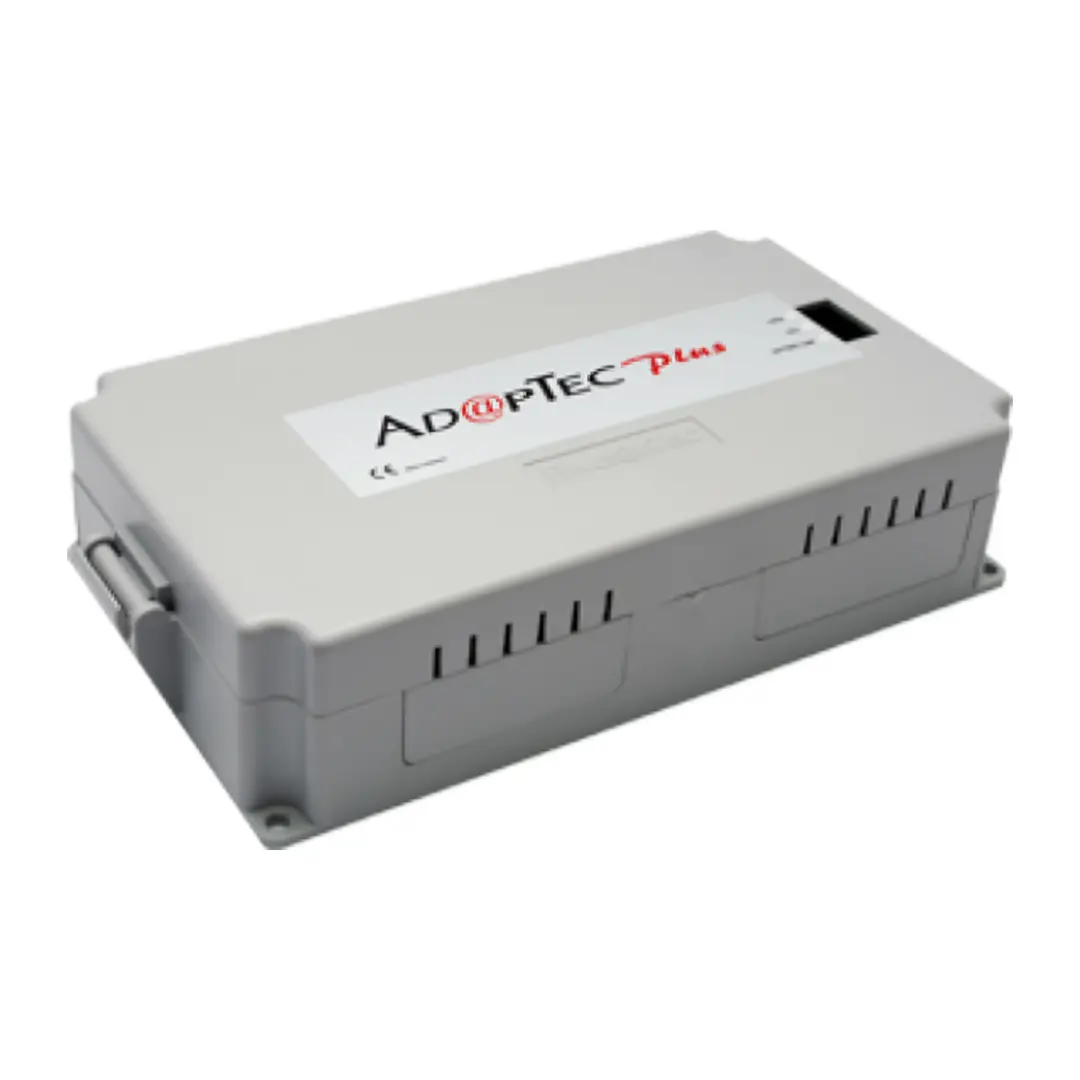

FingerTec AdapTec Plus Power Supply
FingerTec AdapTec Plus combines a power supply and door access controller in a compact casing for an encrypted and secure I/O function, enhancing door access control functionalities and easing installation processes. The FingerTec AdapTec Plus is an exceptional FingerTec accessory in a small package.
Specification: FingerTec AdapTec Plus Power Supply
Category | Details |
Surface Finishing | Acrylonitrile Butadiene Styrene (ABS) |
Dimensions (mm) | 212 x 49 x 114 |
Weight (kg) | 0.6 |
CPU | High Performance RISC CPU |
Power Input | AC 110 ~ 240V (Universal Input) |
Power Output | 12 VDC 3A |
Backup Power System | UPS or 12 VDC Rechargeable Battery |
Input Signal | 26-bit FingerTec encrypted Wiegand signal |
Output Signal | 12 VDC 0.5A Siren12 VDC 3A EM Output (NO/NC Type Door Locks) |
Over Input Voltage Alert | Yes, 3 long beeps |
Door Release Alert | Yes, 2 short beeps |
Door Force Open Alert | Yes, continuous beeps (can trigger external siren) |
Illegal Dismantle Alert | Yes, continuous beeps (can trigger external siren) |
Door Unlock Timer | VR Type: LED blinks to indicate unlock time in seconds |
LED Indicators | EM LED – Door lock output working status LED – CPU working Battery Low LED – Battery is low and cut-off |
Over-Voltage Protection | Triggered if voltage > 15 VDC |
Fuses | PTC Type |
Battery Cut-Off | Between 8.5 – 9.5 VDC |
