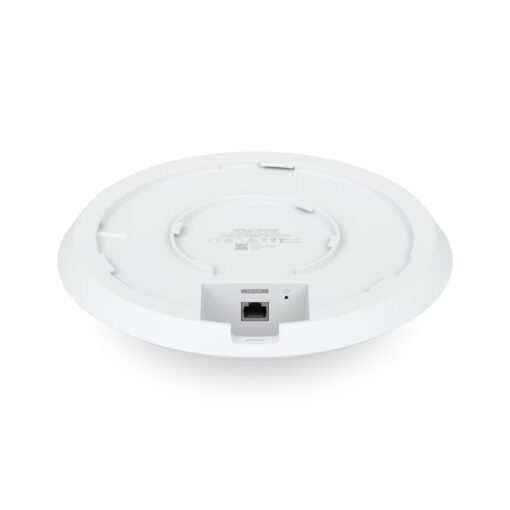

The Ubiquiti UniFi U6 LR is a powerful Wi-Fi 6 access point designed to provide exceptional wireless performance, even in challenging environments. It features high-power amplifiers and advanced antenna technology to extend Wi-Fi coverage to every corner of your space.
Technical Specification: Ubiquiti UniFi U6 LR Access Point
| Category | Feature | Details |
| Dimensions | Size | Ø220 x 48 mm (Ø8.7 x 1.9″) |
| WiFi Standard | WiFi Version | WiFi 6 (802.11ax) |
| Spatial Streams | Total Streams | 8 |
| Coverage Area | Max Coverage | 185 m² (2,000 ft²) |
| Client Capacity | Max Client Count | 350+ |
| Uplink | Ethernet Ports | 1 x GbE |
| Mounting | Location | Ceiling, wall |
| Mounting Plate | Pro mounting plate (Included) | |
| Weatherproofing | Rating | IP54 |
| Power | Power Method | PoE+ |
| Performance | MIMO (5 GHz) | 4 x 4 (DL/UL MU-MIMO) |
| MIMO (2.4 GHz) | 4 x 4 (SU-MIMO) | |
| Max Data Rate (5 GHz) | 2.4 Gbps (BW160) | |
| Max Data Rate (2.4 GHz) | 600 Mbps (BW40) | |
| Antenna Gain | 5 GHz | 5.5 dBi |
| 2.4 GHz | 4 dBi | |
| Max. TX Power | 5 GHz | 26 dBm |
| 2.4 GHz | 26 dBm | |
| BSSIDs | Max BSSIDs | 8 per radio |
| Wireless Features | Wireless Meshing | Yes |
| Band Steering | Yes | |
| Fast Roaming (802.11r) | Yes | |
| BSS Transition (802.11v) | Yes | |
| Radio Resource Management (802.11k) | Yes | |
| Hotspot Features | Captive Portal | Yes |
| Custom Branding | Yes | |
| Voucher Authentication | Yes | |
| Payment Authentication | Yes | |
| External Portal Support | Yes | |
| Guest Network Isolation | Yes | |
| Security & Management | Private Pre-Shared Key (PPSK) | Yes |
| WiFi Speed Limiting | Yes | |
| Client Device Isolation | Yes | |
| WiFi Schedules | Yes | |
| RadSec (RADIUS over TLS) | Yes | |
| Dynamic VLAN Assignment | Yes | |
| Hardware | Max Power Consumption | 18.5W |
| Voltage Range | 44–57V DC | |
| Networking Ports | 1 x GbE RJ45 port | |
| Weight | Device: 800 g (1.8 lb) / With mount: 930 g (2.1 lb) | |
| Enclosure | Material | Polycarbonate |
| Mount Material | Stainless steel (SUS304) | |
| LED Indicators | System Status | White/Blue |
| Channel Bandwidth | Supported Bands | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
| Certifications | Compliance | CE, FCC, IC |
| Operating Frequency | US/CA | 2400–2472 MHz, 5150–5850 MHz |
| Worldwide | 2400–2483.5 MHz, 5150–5725 MHz | |
| Environment | Operating Temperature | -30 to 60°C (-22 to 140°F) |
The Ubiquiti UniFi U6 LR is perfect for:
- Large Homes: Cover every room with reliable Wi-Fi.
- Small Offices: Provide high-speed Wi-Fi for employees.
- Outdoor Areas: Extend Wi-Fi coverage to patios, gardens, or outdoor spaces.
With its powerful features and easy installation, the Ubiquiti UniFi U6 LR is the ideal choice for anyone who needs reliable, long-range Wi-Fi.
