The Ubiquiti NanoStation M5 (NSM5) is a robust outdoor CPE designed for high-speed, long-range wireless connections in the 5GHz band. Perfect for ISPs, enterprises, and remote applications across the UAE, it ensures reliable 15km wireless links with MIMO technology and weatherproof durability.
Specification – Ubiquiti NanoStation M5 (NSM5)
| Feature | Details |
| Brand | Ubiquiti Networks |
| Model Name | NanoStation M5 (NSM5) |
| Frequency Band | 5 GHz (5170–5875 MHz) |
| Max Wireless Speed | Up to 150 Mbps |
| Antenna Type | Built-in MIMO dual-polarized antenna |
| Antenna Gain | 14.6–16.1 dBi |
| Max Range | Up to 15 km (line-of-sight) |

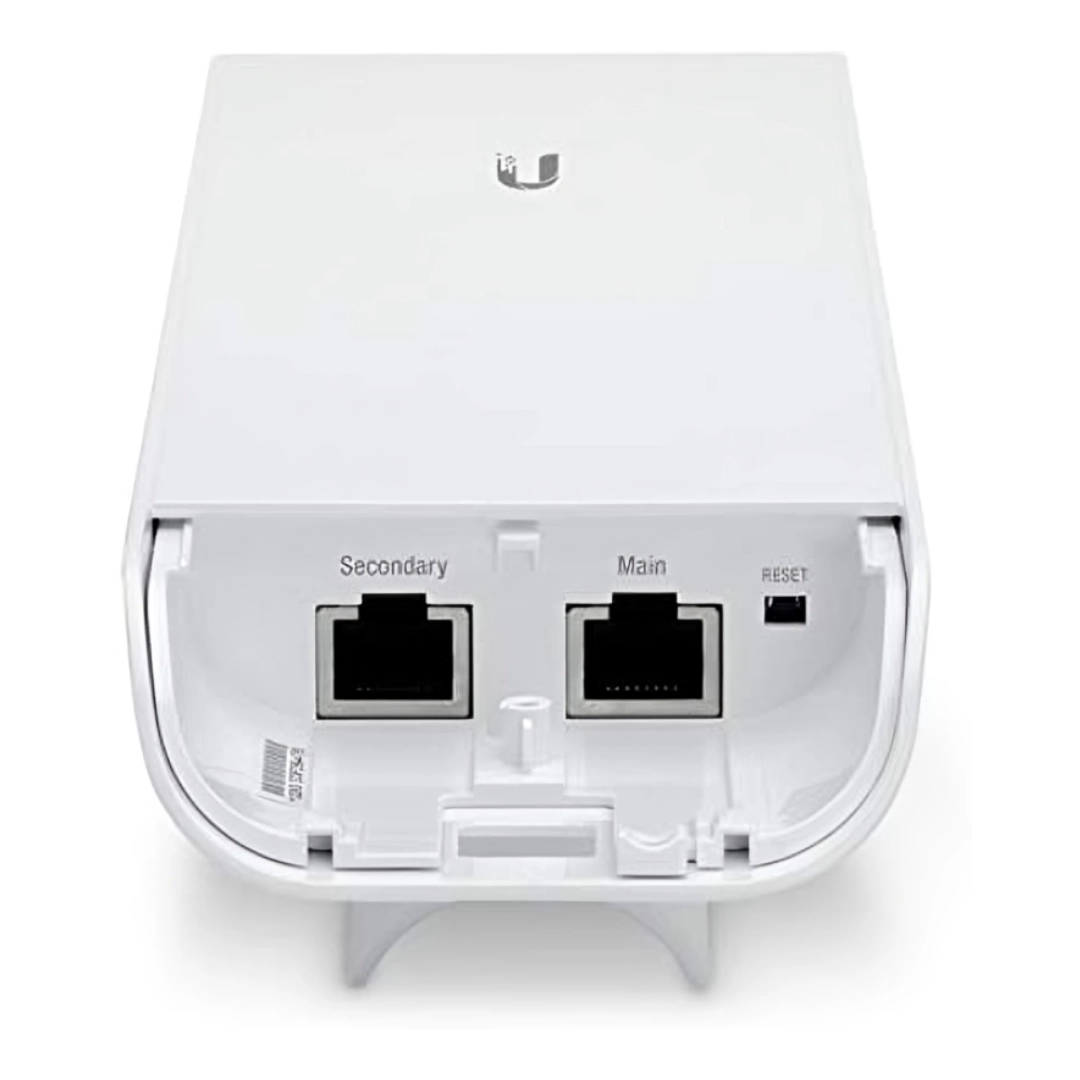

| Ethernet Ports | 2 × 10/100 Mbps (PoE supported) |
| Power Supply | Passive PoE, 24V (adapter included) |
| Max Power Consumption | 8 W |
| Processor | Atheros MIPS 24Kc, 400 MHz |
| Memory | 32 MB SDRAM, 8 MB Flash |
| Enclosure | UV-stabilized weatherproof plastic |
| Dimensions | 294 × 31 × 80 mm |
| Weight | 400 g |
| Operating Temperature | -30°C to +80°C |
| Certifications | CE, FCC, RoHS, NDAA compliant |

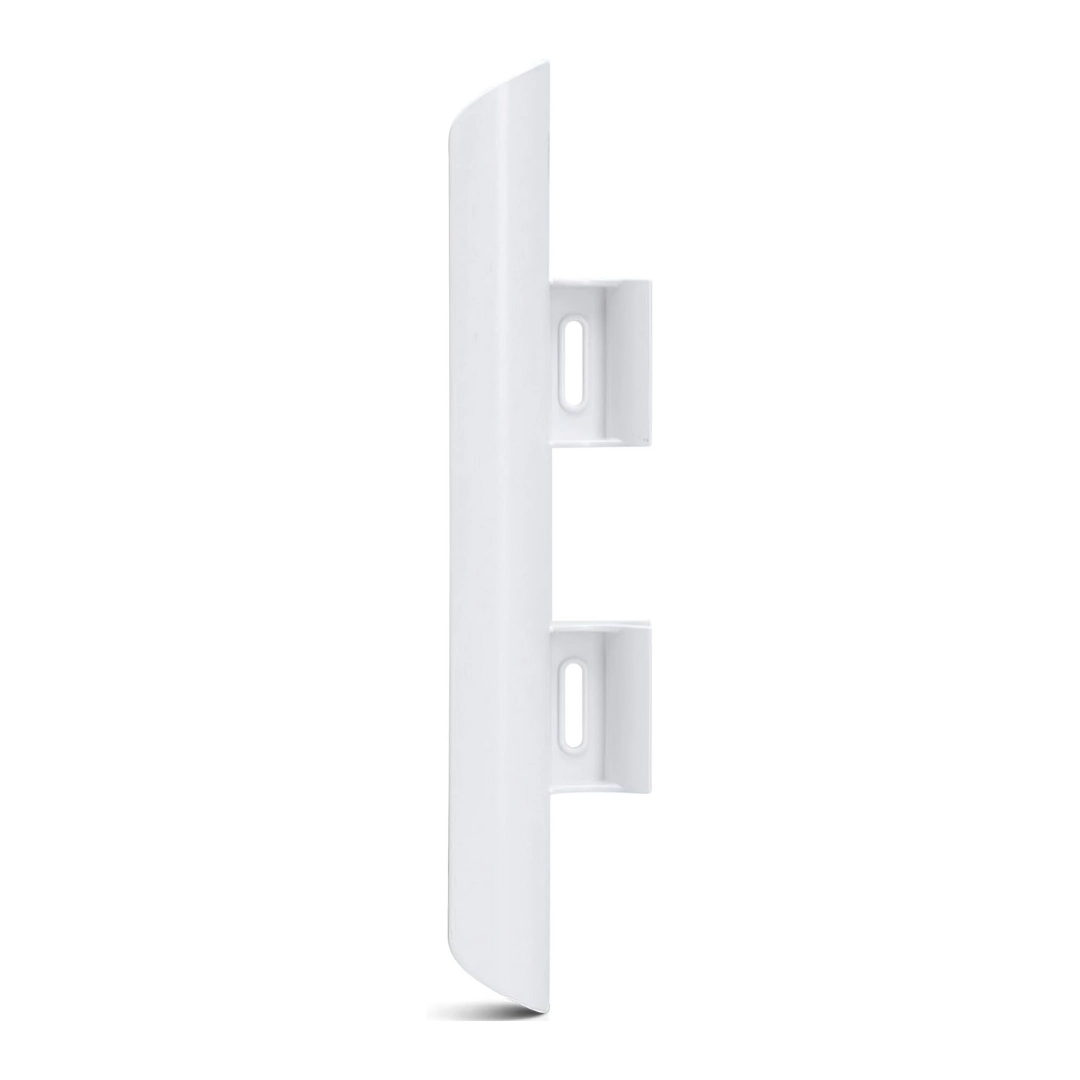

| Mounting Options | Pole mount kit included |
Applications
- Wireless point-to-point and point-to-multipoint links
- ISP backbone and remote site bridging
- Outdoor IP CCTV and surveillance deployments
- Rural and community Wi-Fi coverage
- Temporary event internet connectivity
Why Buy from CostToCost.ae?
- 100% genuine Ubiquiti products backed by warranty.
- Fast shipping across Dubai, Abu Dhabi, Sharjah, and other UAE regions.
- Expert customer and technical support with local knowledge.
Frequently Asked Questions (FAQ)- Ubiquiti NanoStation M5 (NSM5) AirMAX CPE
Q: Is the NSM5 suitable for harsh outdoor environments in the UAE?
A: Yes, it has a rugged weatherproof design that withstands dust, heat, and humidity common in the UAE.
Q: What is the maximum wireless speed and range?
A: It supports speeds up to 150 Mbps and a maximum line-of-sight range of 15 km.
Q: Does it support Power over Ethernet (PoE)?
A: Yes, the NSM5 comes with 24V passive PoE and supports PoE passthrough on the secondary port.
Q: Can it be used for multi-point setups?
A: Yes, ideal for both PtP and PtMP configurations.
Q: Is warranty and local support available?
A: Genuine products come with a manufacturer’s warranty and local expert support in UAE.
Q: What wireless technology does the NSM5 use?
A: It uses Ubiquiti’s airMAX TDMA protocol for efficient bandwidth use and low latency.
