Description
Hikvision DS-7732NI-K4 4K IP NVR review
Professional and Reliability Hikvision NVR
H.265+ compression effectively reduces the storage space by up to 75%
Adopt stream over TLS encryption technology which provides a more secure stream transmission service
HD Video Output ds-7732ni-i4
- Provide independent HDMI and VGA outputs
- HDMI video output at up to 4K resolution
Storage and Playback
- 4 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
- 8/16-ch synchronous playback
- Smart Function
- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
Network & Ethernet Access
- 2 self-adaptive 10/100/1000 Mbps Ethernet interfaces
- Hik-Connect for easy network management
DS-7732NI-K4 Specifications
- Recording resolution up to 8 MP
- Resolution of independent video outputs: HDMI up to 4K@30Hz, VGA up to 1080p@60Hz
- Max total bandwidth (input/output): 256/160 Mbps
- Support of 32 IP cameras (Hikvision or ONVIF-compliant)
- Support for four SATA HDDs, each up to up 6 TB
- Support for H.265+/H.265/H.264+/H.264/MPEG4 video compression
- VCA functions (face detection, the crossing of the virtual line, area intrusion detection, etc.)
- Support for ANR function
- Channel 0 – possibility to monitor all cameras with minimum demand for network bandwidth
- 2x USB 2.0, 1x USB 3.0, RS-485, RS-232
- Audio input/output (1/1)
- Alarm inputs/outputs (16/4)
- Monitoring of statuses of LAN, cameras, HDDs
32-channel IP Network Video Recorder

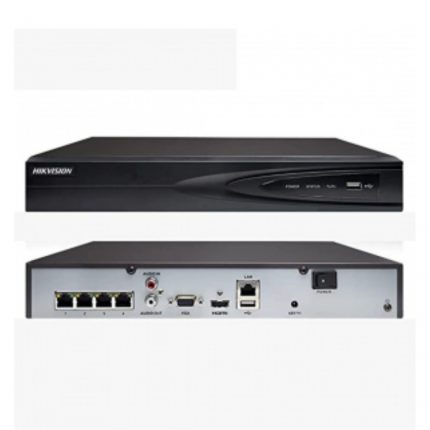

Hikvision ds-7732ni-k4 4k is a modern 32-channel IP network video recorder capable of monitoring, recording, and playing back images from 32 IP cameras of megapixel resolutions, up to 8 MP. Its independent HDMI (up to 4K) and VGA (up to 1080p) monitor outputs can provide images with different layouts. Each monitor can display the video from any camera, in any screen division.
Four SATA ports enable the user to install four hard drives, each with a capacity of up to 6 TB. Additionally, the NVR supports NAS (NFS) and SAN (iSCSI) disk arrays. In the case of disk space overflow, the newest data overwrites the oldest recordings. Built-in USB ports allow for connecting external memory sticks or disk drives in order to copy some files.
NVR supports alarms
The NVR supports alarms generated by VCA functions (face detection, license plate recognition, crossing virtual lines, area intrusion detection, an entry/exit to/from an area, loss of focus, etc.) implemented in cameras. The response to such an event (e.g. someone crosses the virtual line in a specified direction) can be the change in the state of the alarm output, email notification sent to a monitoring center, etc., depending on the configuration.
Advanced analytics allows installers/users to implement more advanced projects, perform quick searches of interesting events, and preset intelligent recording that saves disk space.
With the support of ANR (Automatic Network Replenishment), any IP camera equipped with a memory card can record video in the absence of a network connection. After the restoration of the network connection, the recordings are automatically synchronized with those recorded on the NVR. This ensures continuous coverage of events, even in the case of communication problems between the camera and NVR.
The menu of the DVR has been designed in a manner that helps everyone, even novice users, navigate and make changes to the settings. Both the layout of commonly used functions and graphic design meet the highest current standards. The support for Firefox, Opera, and Safari eliminates the need for installing ActiveX components.
IP CCTV systems based on Hikvision IP cameras and NVRs can be configured for continuous recording with special parameters in the case of specific events. Each channel can be configured individually in this aspect. It is possible to increase the frame and bit rates, independently of the continuous recording settings.
After the occurrence of an event (motion detection, camera tampering, etc), the NVR automatically switches to the event-recording mode (usually with higher parameters). During the rest of the time the recording is carried out in continuous mode.
The increased parameters just before and after the event allow playing back every second of the period with high detail and smoothness, while the recordings between events may have a much lower performance, taking significantly less space on the storage media.
Communication with the NVR can be set via a web browser or through free client software: iVMS 4200 (computers), iVMS 4500, or Hik-Connect (smartphones). The users can also access the device through two free cloud services: Ezviz and Hik-Connect (which is the successor of HikDDNS).
The iVMS 4200 client software enables users of HIKVISION devices to manage them in IP networks. The software allows for the configuration and management of NVRs/DVRs, IP, and analog cameras (in hybrid systems).
The iVMS 4200 utility can remotely manage up to 256 devices, with the use of up to 4 monitors. Oner monitor can display images from up to 64 cameras. Aside from system configuration and live monitoring, the utility can be used for remote playback, notifying, two-way audio transmission, and creating multi-level e-maps.
